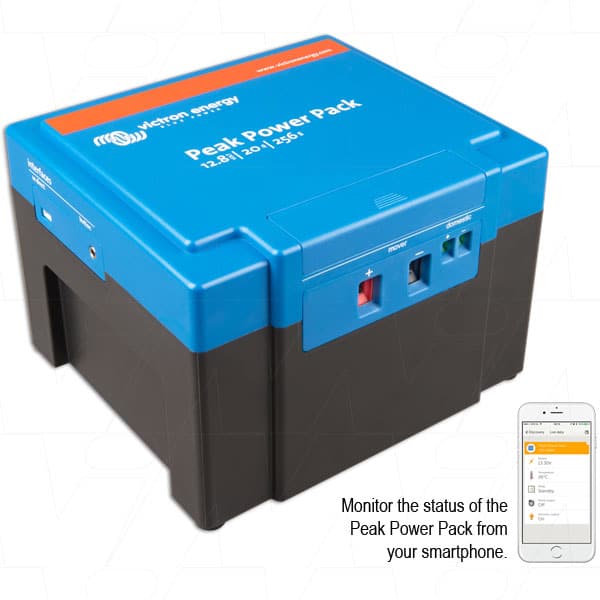

Victron Energy PPP012020000 12.8V 20Ah Lithium Iron Phosphate

Description Model No PPP-20 Description Victron Energy PPP012020000 12.8V 20Ah Lithium Iron Phosphate (LiFePO4) Peak Power Pack (PPP) for High Rate Discharge Output up to 150A Continuous / 200A Pulse (10sec) Application Caravan Manoeuvring Systems and other Energy-Intensive Applications Original Brand Victron Energy PPP012020000 Chemistry Lithium Iron Phosphate Voltage 12.8V Nominal Capacity 20Ah Watt Hour 256.0Wh Maximum Continuous Discharge Current 150A Width 190mm Height 132mm Length/Breadth/Depth 172mm Weight 3800g Maximum Pulse Discharge Current 200000mA Brand High rate 12.8V 20Ah Lithium Iron Phosphate (LiFePO4) battery module features high rate discharge output while also having built-in protection against excessive battery discharge. Perfect for use in “movers” – caravan manoeuvring systems – and other energy-intensive applications. Suitable for caravans above 1000kg. For lighter caravans see 8Ah Victron model. Features: Lightweight and easy to install. Ideal for mobile applications. Effective protection against improper use. Ideal for solar power and other applications where excessive discharge might quickly cause damage to lead acid batteries. Dual output: Output 1: high capacity output for caravan movers Output 2: low capacity output for domestic low DC loads, eg: lighting, audio/video/ pumps, fridges (NOT available on 8Ah model) Dual input: Input 1 “car/solar”: charging while driving or charging with a solar panel. Equipped with voltage and current control for safe charging. In fact, any source of electric power can be connected to this input (e.g. a dynamo or a battery charger), as long as 11V < Vin < 25V. The current limitation is automatically set to a safe value. Input 2 “adapter”: the adapter supplied can be connected to this input. Battery charging current: 3A, and suitable for 110/230V power supply. Storage mode – Reduces power consumption to almost zero. Prevents damage by excessive discharge of the battery during storage. Remote control with status indicator. Push button (supplied) with a dual-colour LED status indicator: Short push of the button: high capacity output activated for 30 minutes (mover applications), LED red. Hold down for 2 seconds: high capacity output always activated, LED red, slow flashing. Hold down for 5 seconds: storage mode, LED blue, flashes 10 times. Battery is charged via input 1, LED blue, slow flashing. Battery fully charged, LED blue. Overload or overheating, LED red, flashes. VE.Direct port: can be connected to a PC or smartphone (‘VE.Direct to USB’ or ‘VE.Direct Bluetooth Smart dongle’ required). Simple operation: Output 1: on / 30-minute timer / off Output 2: on/off Input 1: on/off Scanning: Battery voltage Temperature and alarms Specifications: Output 1 (mover): Continuous output current: 150A Maximum output current (10 seconds): 200A Short-circuit current: 300A Safety features: Overload, short-circuiting, temperature, excessive discharge Recommended charging voltage: 14V (no protection) Maximum charging voltage: 14.2V (no protection) Maximum cable diameter: 16mm² (screw clamps) Output 2 (domestic): Continuous output current: 30A Maximum output current (10 seconds): 50A Short-circuit current: 80A Safety features: Overload, short-circuiting, temperature, excessive discharge Maximum charging current: N/A Recommended charging voltage: 14V (no protection) Maximum charging voltage: 14.2V (no protection) Maximum cable diameter: 6mm² (screw clamps) Input 1 (car/solar): Input voltage range: 11 V < Vin < 25 V Current limitation: 7A Input 2 (adaptor): Output voltage: 15V Output current: 3A Input voltage: 110 / 230 V 50 / 60 Hz Temperature (charging and discharging not possible outside the given temperature range): Charge: 0°C to 40ºC Discharge: -20°C to 40ºC Storage: -20°C to 40ºC Comes with: Power Supply Embedded LiIon battery charger Camper attachments Cable with Push Button Main Power Input cable to charger     SHIPPING RESTRICTIONS APPLY Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.UN3480 FULLY DECLARED CLASS 9 DANGEROUS GOODS LITHIUM ION BATTERIES – Contains cells/batteries packed in accordance with Packing Instruction P903 from ADG 7.7 & IMDG Code 2020.   Data Sheets: PPP-205708 PPP-204461_2 For more information regarding the Victron Energy PPP012020000 12.8V 20Ah Lithium Iron Phosphate please contact us via any of the methods available here or message us on social media and we’ll be happy to assist!
