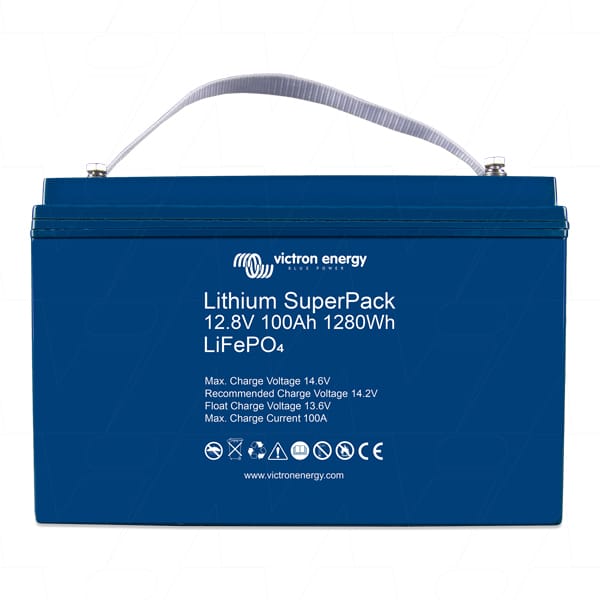

Victron Energy 12V 100Ah LiFePO4 High Current SuperPack Battery BAT512110710

Description Model No LFP-LSP12.8/100HC Description 12V 100Ah LiFePO4 High Current SuperPack Rechargeable Battery with Integrated BMS and Safety Switch BAT512110710 Original Brand Victron Energy BAT512110710 Chemistry Lithium Iron Phosphate (LiFePO4) Voltage 12.8V Nominal Capacity 100Ah Watt Hour 1280.0Wh Maximum Continuous Discharge Current 100A Termination M8 Threaded Inserts Width 330mm Height 220mm Length/Breadth/Depth 172mm Weight 14000g Brand Victron Energy 12V 100Ah LiFePO4 High Current SuperPack Battery BAT512110710 High Current 12.8V 100Ah LiFePO4 Integrated BMS and safety switch The SuperPack batteries are extremely easy to install, needing no additional components. The internal switch will disconnect the battery in case of over discharge, over charge or high temperature. Abuse proof A lead-acid battery will fail prematurely due to sulfation: • If it operates in deficit mode during long periods of time (i.e. if the battery is rarely, or never at all, fully charged). • If it is left partially charged or worse, fully discharged. A Lithium-Ion battery does not need to be fully charged. Service life even slightly improves in case of partial charge instead of a full charge. This is a major advantage of Li-ion compared to lead-acid. The SuperPack batteries will cut-off the charge or discharge current when the maximum ratings are exceeded. Efficient In several applications (especially off-grid solar), energy efficiency can be of crucial importance. The round-trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of the average lead-acid battery is 80%. The round-trip energy efficiency of a Li-ion battery is 92%. The charge process of lead-acid batteries becomes particularly inefficient when the 80% state of charge has been reached, resulting in efficiencies of 50% or even less in solar systems where several days of reserve energy are required (battery operating in 70% to 100% charged state). In contrast, a Li-ion battery will still achieve 90% efficiency even under shallow discharge conditions. Can be connected in parallel The batteries can be connected in parallel. Series connection is not allowed. Use in upright position only. Specifications: Cycle life: 2500 cycles (80% DoD) @ 25Deg Celcius Max. continuous discharge current: 100A End of discharge voltage: 10.0V Charge voltage: 14.2V – 14.4V (14.2V recommended) Float voltage: 13.5V Max. cont. charge current: 100A Operating Discharge temperature: -10°C to 50ºC Operating Charge temperature: 5°C to 45ºC Storage temperature: -40°C to 65ºC Humidity (non-condensing): max. 95% Protection class: IP43 Consider implementing Victron Energy’s range of Lithium Iron Phosphate modules in high energy demand applications: More RUGGED compared to lead acid batteries. LiFePO4 batteries do not need to be fully charged all the time. A partial charge may even slightly improve service life. In addition, LiFePO4 batteries have a wider operating temperature range, excellent cycling performance, lower internal resistance and higher rate of efficiency than lead acid batteries. Lead acid batteries will fail prematurely due to sulfation if the battery is rarely, or never at all, fully charged or if the battery is stored for long periods partially or fully discharged. Higher ENERGY EFFICIENCY than lead acid batteries. Round trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of LiFePO4 batteries is 92% compared to lead acid batteries at around 80%. In off-grid applications like solar and/or wind, better energy efficiency means less energy loss. SMALLER and LIGHTER than lead acid batteries. LiFePO4 batteries are up to 70% smaller and 70% lighter than equivalent lead acid batteries. Data Sheets: LFP-LSP12.8_100HC0966   SHIPPING RESTRICTIONS APPLY Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.UN3480 FULLY DECLARED CLASS 9 DANGEROUS GOODS LITHIUM ION BATTERIES – Contains cells/batteries packed in accordance with Packing Instruction P903 from ADG 7.7 & IMDG Code 2020. For more information regarding the Victron Energy 12V 100Ah LiFePO4 High Current SuperPack Battery BAT512110710 please contact us via any of the methods available here or message us on social media and we’ll be happy to assist!
