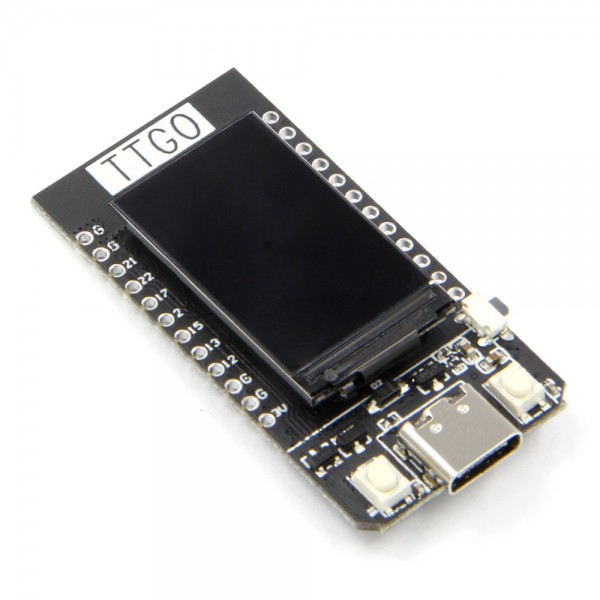

TTGO V1.1 ESP32 – with 1.14 inch TFT Display
$ 18.02
Description The TTGO T-Display from LilyGO is a microcontroller based on an ESP32 with a built-in 1.14 inch TFT display. The USB to serial converter makes it easy to program, even as an Arduino. The board has a USB-C connection with which it can be programmed and/or powered (USB-C cable not included). Specifications: Supply voltage: 3.3V DC or 5V DC GPIO Voltage: 3.3V* ESP32 chip (240Mhz dual core processor) SRAM: 520KB Flash memory: 4MB Built-in Wi-Fi Built-in Bluetooth Built-in 1.14 inch (240×135) TFT (IPS) display (ST7789) Built-in push button Built-in Li-ion/Li-Po battery charging circuit: TP4054 chip can charge up to 500mA USB to serial converter: CH9102F (drivers) Battery connector: 2p Molex Picoblade PCB dimensions: 51.4 x 25.2mm
